Centrifugal cone fan Chicken Poultry House Ventilation Cool Fan Blower

FOB Reference Price:Get Latest Price
$100.00 - $350.00 / Set | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Goldenest
Model Number:
JCZTM2008
Frame material:
hot galvanized
Blade material:
Stainless Steel
Model size:
50'' , 36''
Certification:
ISO9001, CE
50'' Size:
1380*1380*450mm
36'' Size:
1000*1000*450mm
Electric Current Type:
AC
Voltage:
380V / 220V
Using for:
Poultry house, livestock house, greenhouse
Motor brand:
SIEMENS / China famous brand
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week ventilation fan
Packaging & Delivery
Packaging Details
standard carton package
Port
Qingdao, China

_01 ..jpg

Chicken Poultry House Ventilation Fan Blower




 (1) Centrifugal box fan


Our ventilation fans are designed efficiently and effectively maintain optimal environmental conditions.

Belt with tension device. Automatic belt tensioning system maintains constant optimum belt tension.

Stainless fan propellers are aerodynamically balanced for maximum airflow;

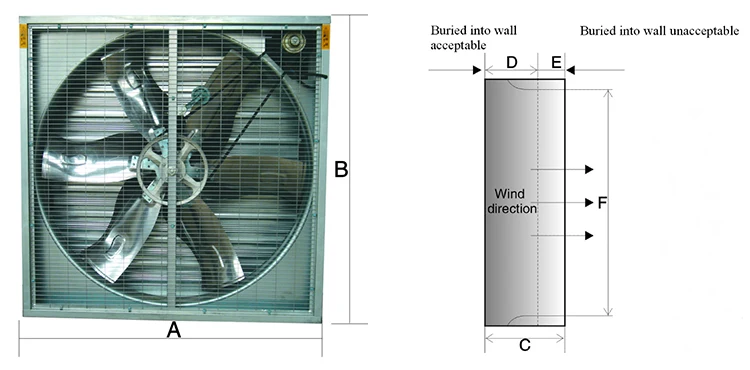

(2) Technical Parameters


Name→

 Item↓

Unit

36"fan

50" fan

A

mm

1000

1380

B

mm

1000

1380

C

mm

450

450

D

mm

305

305

E

mm

145

145

F

mm

910

1290

Weight

KG

65

88



Name→

     Item↓

UNIT

50" fan

36"fan

fan size

mm

1380*1380*450mm

1000*1000*450mm

fan weight

kg

88

65

blade diameter

 mm

1270

910

RPM of blade

 r/min

437

438

current

 A

2.8

1.2

power

 KW

1.1

0.4

RPM of motor

 r/min

1400

1400

Capacity

 M3/h

43080

20800

Noise

dB

≤65

≤64



(3) Main Features

Poultry fan instruction:

1. Huge airflow, Low noise, high efficiency.Good looking, the surface smoothness & gloss without rough edges.
2. Shutters be use counterweight open-close system.Easy to maintenance.
3. Fan housing: Strength galvanized steel.
Shutters: Stainless steel, good seal performance, prevent rain come into the fan and easy to remove and maintenance.
4. Fan Propeller: 6pcs blades of propeller made from CNC punch.
Rational angles of the blades to supply huge airflow and low noise.Fan blades with strength galvanized steel
5. Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
6. Belt Pulley:Be made by strength die casting aluminum with once-forming press. Smooth surface of the groove to supply low noise and huge airflow, and extend the working life of the belt.
7. V-Belt: be use USA “GATES” belt to supply performance of high strength & good ductile.

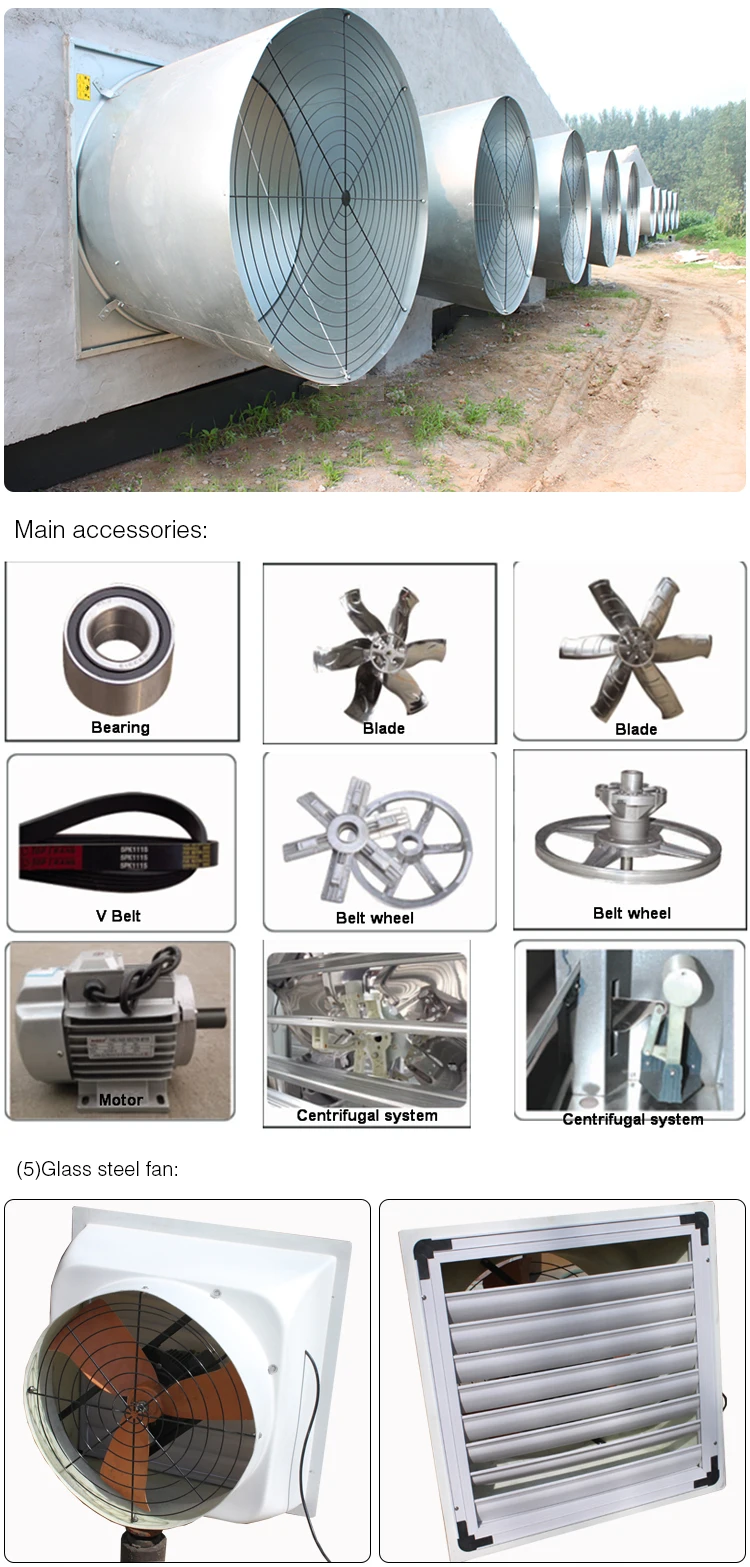

(4) Centrifugal butterfly cone fan




Model

50/0.75

50/1.1

Capacity  (m³/h)

44000

49500

Noise  (dBA)

64

65

Weight  (KG)

110

112

Diameter of blades  (mm)

1270

1270

Rared voltage (v)

380

380

Rated power  (kW)

0.75

1.1

PRM of blades  (n/min)

450

450



Practical application
