Turnkey agricultural project chicken production equipment

FOB Reference Price:Get Latest Price
$50.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Goldenest
Model Number:
JCMTA1013
Color:
white/red
patent No.:
200920162649.8
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
All the pan feeds shall be wrapped around thin polyethylene film and then be arrange into the carton box
Port
Qingdao
Product Description

  Patented agricultrual chicken farm equipment for broiler farming

  Goldenest Machinery Manufacturing (Qingdao) Inc. is the professional poultry and livestock automatic chicken farming equipment manufacturer since 1987 year.



   We provide complete automatic equipment for poultry house.



   The System include:

1. Automatic pan feeding line/ pan feeder

2. Automatic nipple drinking line/ nipple drinker

3. Feed filling silo and hopper

4. Feed delivery auger

5. Cooling pad system

6. Ventilation fan system

7. Heating system

8. Air inlet system

9. Automatic environment control system

10. Manure automatic cleaning system

11. Plastic slats floor for poultry and livestock

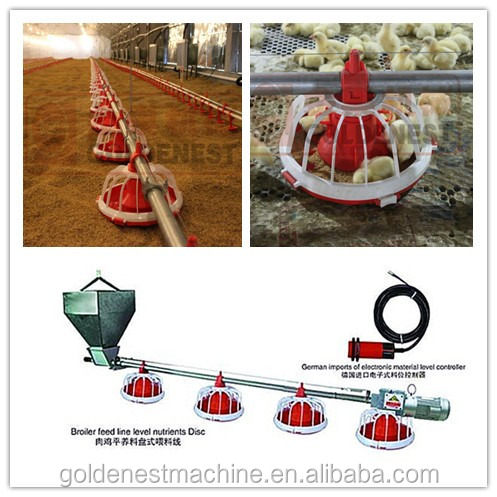

1. The Automatic pan feeding line system / pan feeder

(1). The pan feeding line include:

The pan feeder /  galvanized pipe /  feed auger /  feed bin /  drive motor /  feed sensor / The winch / other parts

(2). The pan feeder : Made by copolymerization PP (engineering plastics), low fat soluble, plus ourself patent nostrum, to keep best tenacity and uvioresistant.

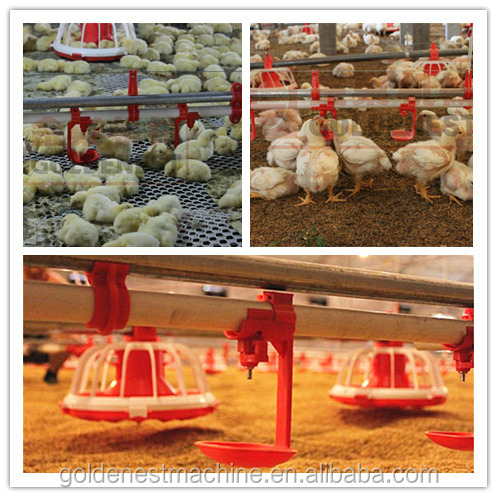

2. The automatic nipple drinking line system / nipple drinker

(1). The nipple drinking line system include:

the nipple drinker with drip cup / the PVC drinking pipe / the galvanized bearing pipe / Pressure regulator / the filter / the backlash unit / the winch / other parts

(2). The material :

the nipple made by 304 stainless steel

the drinker body made by ABS engineering plastics

the drip cup made by copolymerization PP

the drinking pipe made by PVC

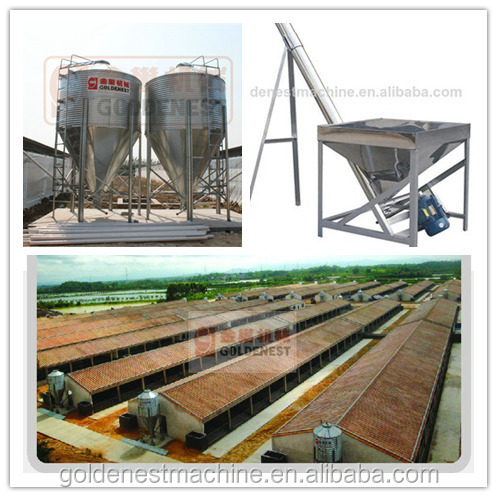

3. The feed silo and hopper system

(1). The feed silo capacity from 2 Ton to 22 Ton size.

(2). The feed silo made by hot galvanized or fiberglass.

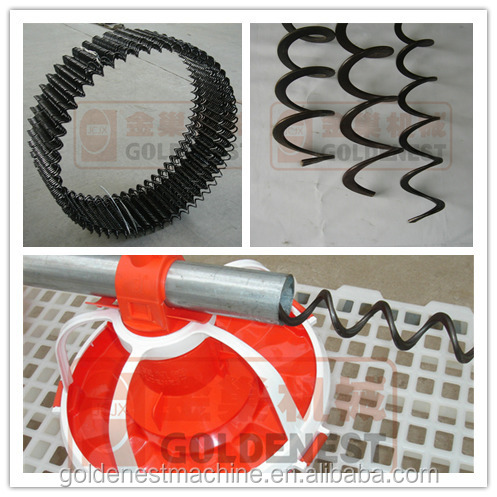

4. The feed auger

(1). The feed auger material import from Japanese or USA

(2). We cost 2000 ten thousand bring in the Germany feed auger technology and produce line.

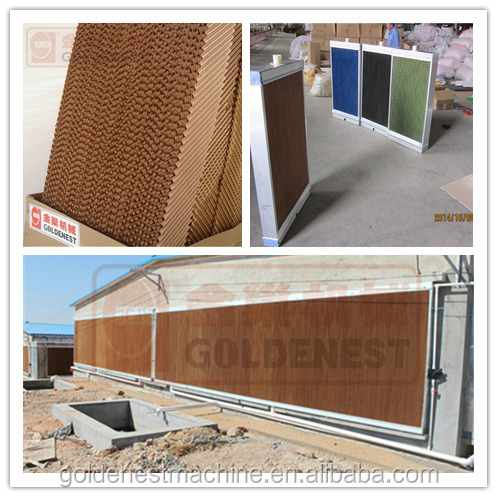

5. Cooling pad system

(1). Type 7090 / type 5090 / Type 6090 / Type 7060

(2). The height / width / thickness , all size we have. like 1800mm*600mm*150mm / 1500mm*600mm*100mm.

(3). Goldenest have branch factory to produce cooling pad, we are the biggest manufacturer in Shandong Province of China.

(4). The cooling pad made by imported fiber paper, pure glue.

(5). keep 8-10 year using life.

(6). Also have  aluminium frame , water pump and pipe to provide.

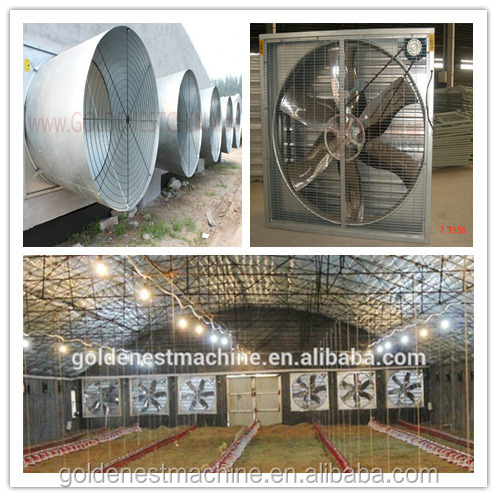

6. Ventilation fans system

(1). Kinds of size and type.

50' Butterfly Cone fan  /  50' and 36' Centrifugal fan / Hammer fan

(2). The technology standard along international.

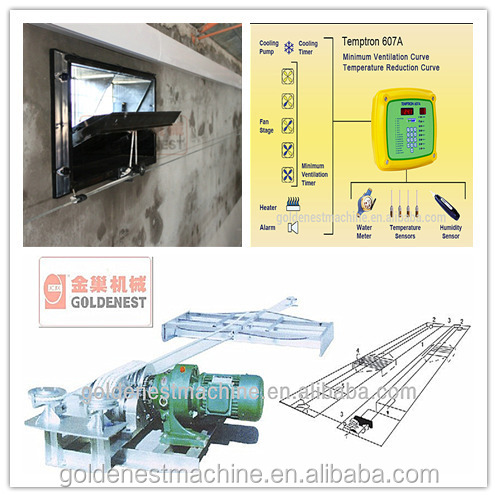

8. The air inlet system

(1). The plastic air inlet size is 270mm*560mm, usually we suggest 3m distance in side wall.

(2). Could choose automatic or manual control open and close.



9. The automatic environment control system

(1). T607 and T616 .

(2). Environment controller / control electric box / temperature and humidity sensor / alarm device .

(3). Automatic control the cooling , the fan, the air inlet , keep the poultry house comfortable environment.



10. The automatic manure cleaning system

(1). Could design and custom along your poultry house width and layout.

(2). Include the cleaning scraper / the drive motor / the corner / the rope .

(3). One motor could drive 2 scraper to work at same time.

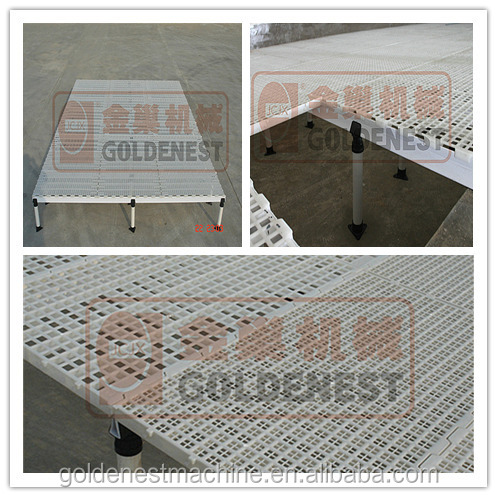

11. The plastic slats floor

1. The material

Made by 100% raw material, plus ourself patent nostrum, to keep best tenacity and uvioresistant, high-duty and resist corrosion.

2. There are four type and size :

(1)big square hole 1020mm*600mm*40mm / hole size is 25*20mm / weight is 2.2kg

(2)small square hole 1020mm*600mm*40mm / hole size is 8*6mm / weight is 2.38kg

(3)oblong hole 1200mm*500mm*40mm / hole size is 40mm*18mm / weight is 2.3kg

(4)oblong hole 1000mm*500mm*40mm / hole size is 40mm*18mm / weight is 1.91kg





Packaging & Shipping

 All the products will be put into the cartons





Company Information

   GOLDENEST MACHINERY MANUFACTURING (QINGDAO) INC is the earliest enterprise which engaged in the design, research, and manufacture of the husbandry of poultry and livestock. We have the most powerful R&D department and also advanced equipment to manufacture our products.

Our Services

    Goldenest specializes in planning and executing commercial broiler TURN-KEY PROJECTS for clients around the globe.
