chicken drinking nipple

FOB Reference Price:Get Latest Price
$480.00 - $610.00 / Set | 1 Set/Sets (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
Full automatic
4 nipple drinkers and drip cups per meter
Ground chicken raising
Hot galvanized and purify raw material all the plastic parts
ISO9001: 2000
15 broilers, 12 breeders or 10 ducks per nipple drinker
Export standard
Drinkers can be triggered from 360 degree
Life span:
15 years
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export cartons or plastic bags
Qingdao, China
Lead Time :
2 weeks after the contract is signed
Product Description

    This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily, can avoid some birds diseases for chicken with playing.


Products details:

Capacity of one nipple drinker 8 - 13 chickens, 10 ducks, 8 - 10 breeder hens
Specification4 or 5 nipple drinkers and drip cups per meter
Water output 39 - 65 ML / Min
Material of water pipe PVC
Diameter of water pipe 22 MM or 25 MM
Drinking Line interval2.5 - 3.5 M
Hanging Point interval3 M
Winch rated load1500 pond
Winch shake1.5 M



A. Front component


    Front part is the controlling part of drinking system, it controls the water pressure and also metering water quantity.

    Water egulator:

    ensure the balance of water pressure when in high or low water pressure, the recoil device is used to

discharge the impurity in the water.

    Filter: ensure the cleaness of water.

    Water metering: convenient to meter the quantity of water.


B. Dinking system of ground chicken raising


Nipple drinker detail:

High quality raw material coat outside

Water resisting stainless steel automatic ball valve

360 degree interface, stainless steel contact pin

Three layers stainless steel sealing seat

' O ' style seal ring

' J ' style valve

Easy to install, more reliable than the usual connecting method without cracking and leakage.

Easy to clean, removable parts.

Seal structure can effectively avoid wasting and humidity

Proper height is very important for healthy growth of bird

The height and level of drinking lines can be regulated freely by winch hanging pieces together with the adjusting rope.


Figures of nipple drinker:

360 degree triggered,fits for all ages of birds as well as the chickes which born only one day.

304 stainless steel parts,ensure high quality.

New style of flow controlling parts solved the corrosion and wet dung such kind of problems.

Every nipple drinker can sufficiently supply 15 broilers, 12 breeders or 10 ducks.

Easy to use: Designed according to birds' drinking habit, dispense a drip of water whenever they are pecked.

Drinker fixed on the drinking line by a connect part without using screw.

All drinkers are inspected seriously before they can selling, ensure 100% high quality.

Drinkers can be self clean.




C. Figure for ending parts of drinking line:

The reading tube which is at the end of drinking line are made of transparent jaffaite, can be read easily.

Levels of drinking line:

       Age of bird (Day)      1-7        8-14      >15
Height on reading tube (mm)     50-80      80-200    200-350
You can up adjust the metering height 30-50mm for larger demand in summer.
D. The accessoris consist of  a water pipe, a suspension lifting device, an anti - perching device, a hang piece, nipples, cups.
Color of drinking line is orange.
     Advantage:All of the metal parts are hot galvanized. All the plastic parts are made of purify raw material, can ensure long life span. Nipple and water regulator both are high tech with stable performance, chicks can drink very well.
    We product complete poultry husbandry equipments. Using equipments just need one person per poultry house and raise survival rate. Easy to operate, install and clean, service life can reach 15 years.

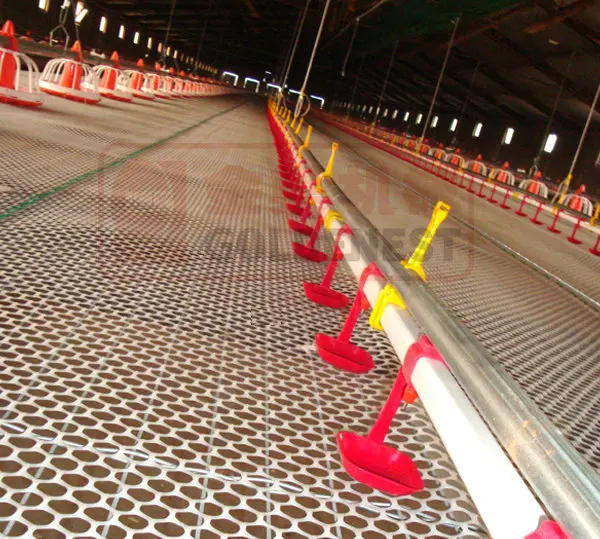

Products pictures:


Packaging & Shipping

Standard export quality of cartons or plastic bags.

Our products have been shipped to West Europe, Eastern Asia, Mid East, Oceania and Africa Etc.



Our Services

 Free samples


Company Information

    Goldenest Machinery  ( Qingdao )  Inc. is the earliest enterprise which engaged in the design, research, and manufacture of the husbandry of poultry and livestock in 1987 in China. We have the most powerful R & D deparment and also advanced equipment to manufacture export standard products.

    We  have imported German " auger exclusive used in conveying "  production line and technology in Feb. 2000.  We are the only one professional auger manufacturer in china.

    We design and manufacture main products as follow:

    A: Complete poultry husbandry equipments  ( not layer )

         Pan feeding system for broilers, Pan feeding system for broiler breeders, Metering cylinder feeding

         system for ancestral broiler breeders, Poultry drinking system, Cooling pad cooling system, Plastic

         floor, Manure cleaning equipment, Spray equipment, Egg collecting box Etc.

     B: Pig husbandry equipments

         Automated feeding equipments, Varieties of stalls, feeders and slats






Contract manufacturing: OEM service offered        Design service offered             Buyer label offered

Otherwise a part of the products are welcome.
