warehouse ,pig|cow house ventilation cooler fan

FOB Reference Price:Get Latest Price
$122.00 - $213.00 / Set | 5 Set/Sets (Min. Order)
Model Number:
JCSYK239
Power:
380
Report Suspicious Activity
Overview
Quick Details
Type:
Evaporative Air Cooler, Centrifugal Fan
Mounting:
Wall / Window Mount, Wall/window/free standing
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Overseas third-party support available
Place of Origin:
Shandong, China
Brand Name:
GOLDENEST
Certification:
CE
Operating Voltage:
380/400 VAC
Condition:
New
Applicable Industries:
Farms
Electric Current Type:
AC
Air Volume:
21000,44000m/h
Blade Material:
Stainless Steel
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
standard export package
Port
QINGDAO

warehouse ventilation cooler fan



Product Description



Our products are widely used in agriculture, industry and other high population concentration or closed places for cooling, such as greenhouse (flower, vegetable and plant), animal house(poultry farm, livestock breeding:cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket.





-------------------------------------------------------------------------------------------------------------------------------------------------------------------

1.275g good quality galvanized sheet frame and shuttersdurable. Special fan blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.



2.Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete, high corrosion resistance.



3.Chinese famous motor OEM by special design for fan(or you can choose Siemens motor), the first put in the phase lack protection device which would power off when shortage of electricity.



4.Fan bearing adopts imported double-row bearing with special waterproof design, water cant enter. High strength, lower noise, maintenance free and long service life.



5.Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.



6.Using the most advanced automatic belt tensioner to ensure working efficiency and good performance.



7.Hot-dip galvanized blade support and safe net ensure never rust.



8.Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.



---------------------------------------------------------------------------------------------------------------------------------------------------------------------

pig|cow house ventilation cooler fan



Technical Parameters:



 This is the best seller in my company,many more models specifications,pls check the test report below.



Model

Diameter Blades

Total Pressure

Noise Decibels

Input Power

Rated Voltage

Motor Rotational Speed

Blades Rotational Speed

mm

pa

db

Kw

v

rpm

rpm

YTD90S-4

1250

56

≤ 70

1.1

420

1400

439



---------------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation site:

20140819 (17).jpg





  pig|cow house ventilation cooler fan

-------------------------------------------------------------------------------------------------------------------------------------------------------------------

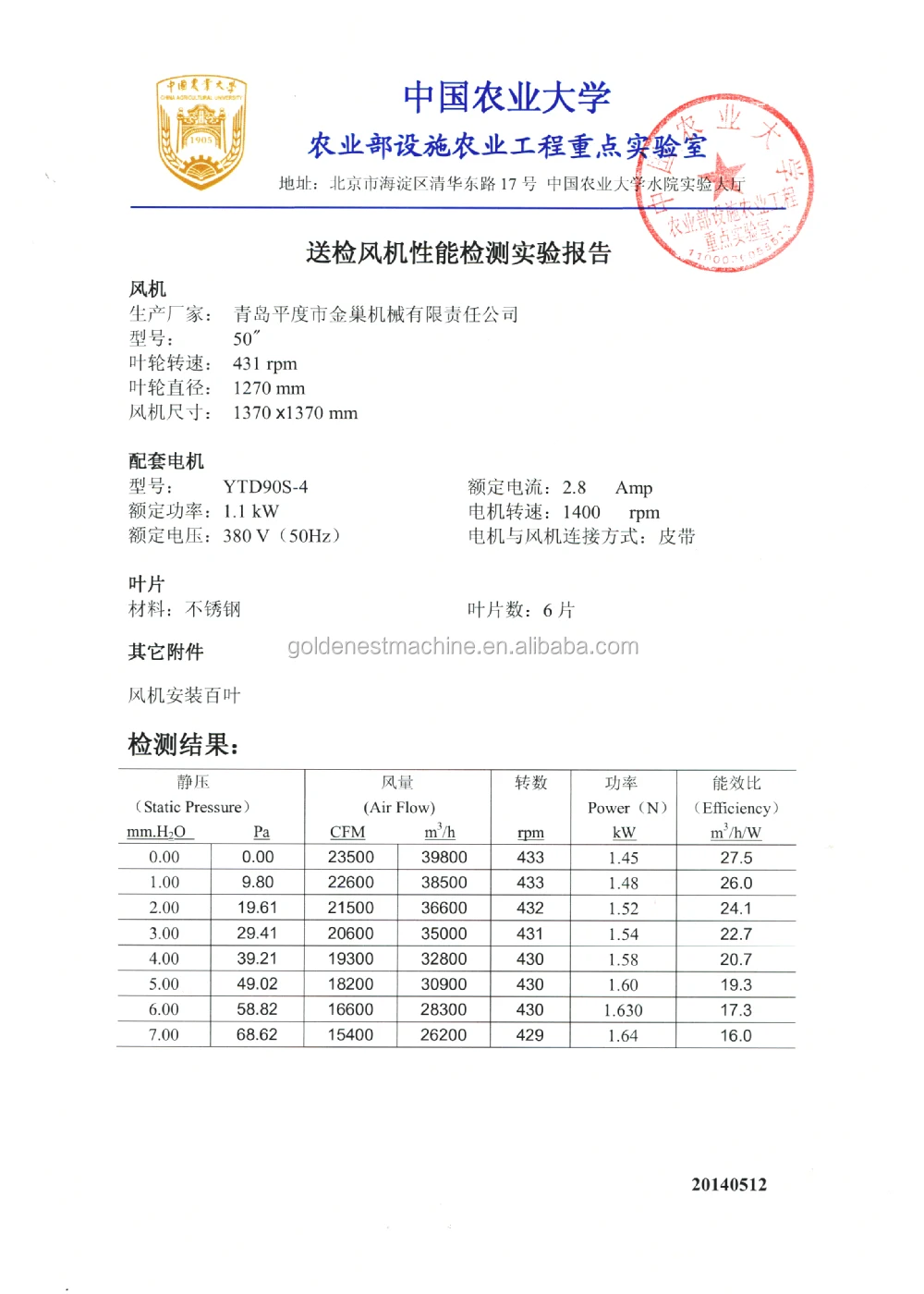

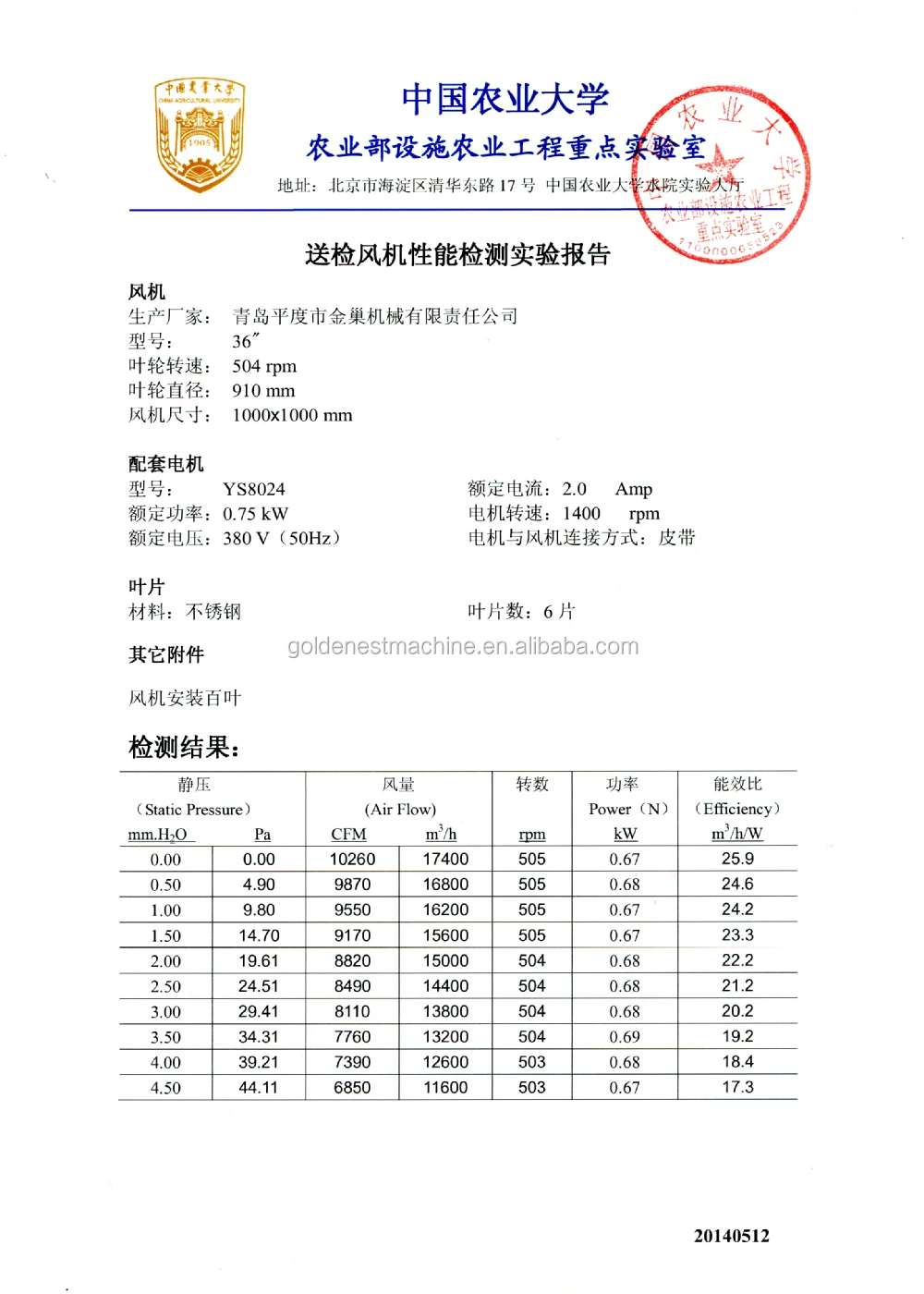

Testing report provided by the most professional authority organization (and CHINA AGRICULTURAL UNIVERSITY)in China:


We welcome you to contact us and hope we can get a good cooperation in future.



-------------------------------------------------------------------------------------------------------------------------------------------------------------------

Our Services



1.Trade Terms:EXW,FOB,CFR and CIF



2.Payment Terms:T/T,L/C



3.Payment Condition:30% deposit in advance,70% balance before delivery



4.Delivery Time:within 7 days



5.Packing:standard export package



---------------------------------------------------------------------------------------------------------------------------------------------------------------------



company information

_



 Shandong Goldenest Machinery Manufacturing Co.,Ltd is the famous enterprise which engaged in the design,research,and manufacture automatic farming equipment for poultry and livestock in China. By now,Goldenest has accumulated about  3 0 year’s experience in technical innovation.

    Goldenests poultry and pig equipment pay more attention to technical innovation and quality improvement,our mainly product,like broiler pan feeding line,broiler nipple drinking line, poultry outside main filling line,breeder metering cylinder pan feeding line,breeder open trough chain feeding line, automatic egg nest system,manure fermentation compost, pig chain feeding system,pig stall system,poultry house environment control system always get unanimous praise from our customers all over the world.

 -----------------------------------------------------------------------------------------------------------------------------------------

Certificates:

A small part of Patents:





 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FAQ



1.Q:Terms of payment.

  A:TT and LC is ok for us.

2.Q:Delivery time.

   A:All poultry and livestock farm equipmen will be shipped in 20 days after order confirmd.

3.Q:Service life of the poultry farm equipment.

   A:10 years service life of our poultry farm equipment.

4.Q:Is free sample available?

   A:Free sample is ok for us, it's the client for freight.

5.Q:I need quotation for full sets poultry farm equipment.

   A:Please let me know the following info:

      1.House size:Length&Width

      2.Height of side&central wall

      3.If for chicken/broiler,chicken weight while moved out.

      4.If for breeder,rearing density or target breeder amounts.

Your enquiry will be replied at first time.
