poultry house fan ventilation

FOB Reference Price:Get Latest Price
$78.00 - $280.00 / Set | 5 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Goldenest
Model Number:
JCC332
color:
white
material:
galvanized steel
Supply Ability
Supply Ability:
2000 Set/Sets per Week
Packaging & Delivery
Packaging Details
carton or plastic bags
Port
QINGDAO
Lead Time :
one week after contract signed

Goldenest  Machinery ---Chinese poultry and pig  automatic farming expert!


   Goldenest Machinery(Qingdao)Inc. is the earliest enterprise whinch engaged in the design,research,and manufacture of the husbandry of poultry and livestock. in China.

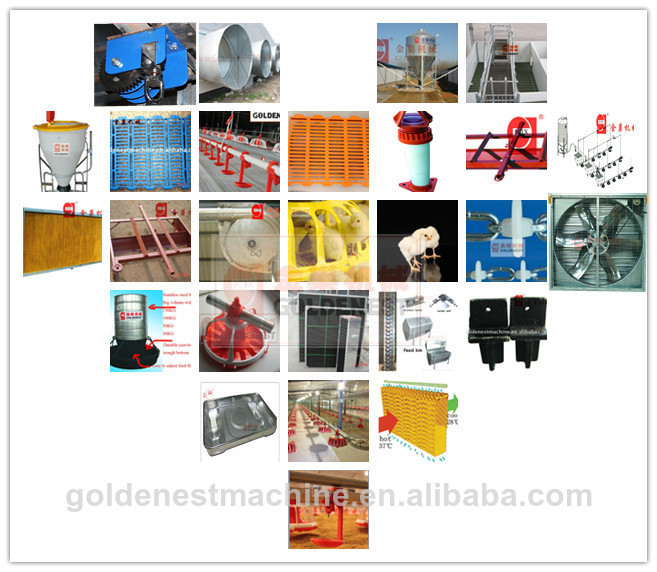

      Our main products include: pan feeder(feeding pan),feeding system for poultry,nipple drinking system feeding system for pigs,galvanized feed silo,plastic slats floor,pig trough,ventilation systems,cooling pads,auger,winch,,manure cleaning system etc.

Our main products :

automatic pan feeding system for poultry,

automatic nipple drinking system for poultry

automatic feeding system for pig

the feed filling line and feed transport auger

galvanized feed silo

plastic slats floor for animal house

ventilation fan ,cooling pad and air inlet system

heater and sprayer system

environment control

manure cleaning system etc.


 Welcome  to  enquire and  we will  try the best on your customized!

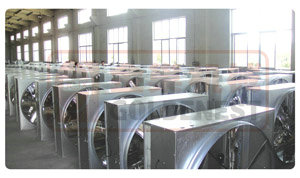

Our ventilation fans are designed efficiently and effectively maintain optimal environmental conditions.

Belt with tension device .Automatic belt tensioning system maintains constant optimum belt tension.

Stainless fan propellers are aerodynamically balanced for maximum airflow;

We have  just the right fan to fit your particular ventilation requirements.

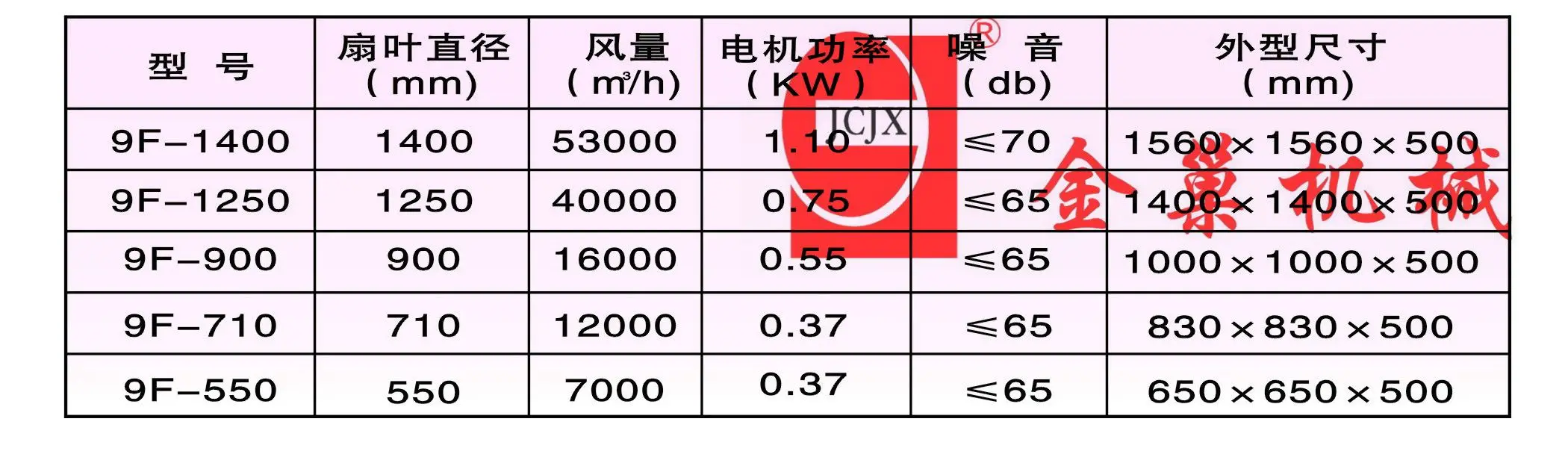

Model

Type

Dia of blade

RPM of blade

RPM of motor

Capacity

Pa

Noise

Input power(W)

Rated voltage(V)

Height

Width

Thickness

830

710

660

1400

20000

60

≤60

550

380

830

830

400

1000

900

610

1400

25000

70

≤70

750

380

1000

1000

400

1380

1250

439

1400

44000

56

≤70

1100

380

1380

1380

400

1530

1400

325

1400

55800

60

≤70

1500

380

1530

1530

400

1 Stainless steel blade,corrosion resistant,long life span.

2 Belt are good tension and make the wind supplying constant and stable.

3 Heavy duty aluminum-magnesium alloy strap wheel.strengthened and durable.

4 Imported bearing with reliable performance

01

21111_1.jpg020407

1  Front open system,butterfly type,with two semicircle shutter,small wind resistance,good air-tightness and high efficiency.

2  For the cone part,plug-type connection.

3  When the two semicircle shutter closed,the rubber sealing ring make good air-tightness.

4  This butterfly fan could avoid the problem of air leakage of the commmon fans.providing an excellent heat preservation effect and improving the cooling pad perfomance.

5  The fan motor installed on top left corner,effectively protect the motor,avoiding wind resistance.



Buttrtfly cone fan

Rated voltage V

380V

Rated current A

2.8A

Input

1.1KW

Fan R/min

1400

Blade R/min

420

Capacity CFM

25260

NPEL/db

 <65

Blade thickness mm

1.2

Shutter thickness mm

1

Upper frame thickness mm

1

Lower frame thickness mm

0.8

Side fram thickness mm

0.8

wheel

Alluminium Alloy

Size mm

1600*1600*1310

Weight Kg

≈95

08

10


 012_1 (2).jpg

          made by  glass fiber reinforced plastics


               We can supply the complete automatic poultry and pigs farming system for you!!



                                                      chicken house photos

you could connect me in following ways---------


If you are satisfied with our product

 please give us a business chance

                          If you are not satisfied with it,

                          please contact me, We strive to get better and better.
